πͺ Webhook
Sentio allows you to define the json message you want to send to webhook. In every webhook call, Sentio sends an array of json messages along with a few more metadata fields.
- event_id: This is unique for the messages from a channel. If you receive an ID more than once, the new message should override the old message. This is required due to blockchain reorganization.
- timestamp_micros: The timestamp in microseconds when the event happened.
- version: The processor version. Every new upload of the processor bumps the version by 1.
The actual json data is in the field "data
" (What you pass in from the processor). A sample data looks like:
[ ... array of following object
{
"export_name": "SwapEvent",
"event_id": 1,
"timestamp_micros": 1668099816652000,
"version": 1,
"data": { ... your exporting data }
},
{
"export_name": "SwapEvent",
"event_id": 2,
"timestamp_micros": 1668099816653000,
"version": 1,
"data": { ... your exporting data }
},
...
]
Your webhook endpoint should acknowledge a message by returning http status code 20x (currently the acknowledgement deadline is 5 seconds), otherwise Sentio will retry sending the message with an exponential back off policy.
If Sentio attempts to deliver the message but can't receive acknowledgement, the message will be considered a dead letter eventually. Dead letters won't be delivered anymore, but can be pulled manually. The retention duration of dead letters is 7 days.
Pulling dead letters
You can call pulling API to get the dead letters in your project.
HTTP Request
GET https://app.sentio.xyz/api/v1/webhook/deadletter/{owner}/{project}?limit={limit}
Fields | Description |
---|---|
owner | (string) The name of the project owner |
project | (string) The name of the project |
limit | (integer) Maximum batches of messages pulled at once, must be less equal than 10 |
Response body
A sample response looks like:
{
"messages": [
{
"id": "6312269039920155",
"attributes": {
"channel_name": "test_channel"
},
"data": "{ ... array of messages }"
},
{
"id": "6312269039920729",
"attributes": {
"channel_name": "test_channel"
},
"data": "{ ... array of messages }"
},
...
]
}
Use Exporter in processor
You can use Exporter
to send webhooks. Note that you need to provide the channel name notification-channel in the exporter (configured on the UI).
const exporter = Exporter.register("SwapEvents", "WebhookChannel")

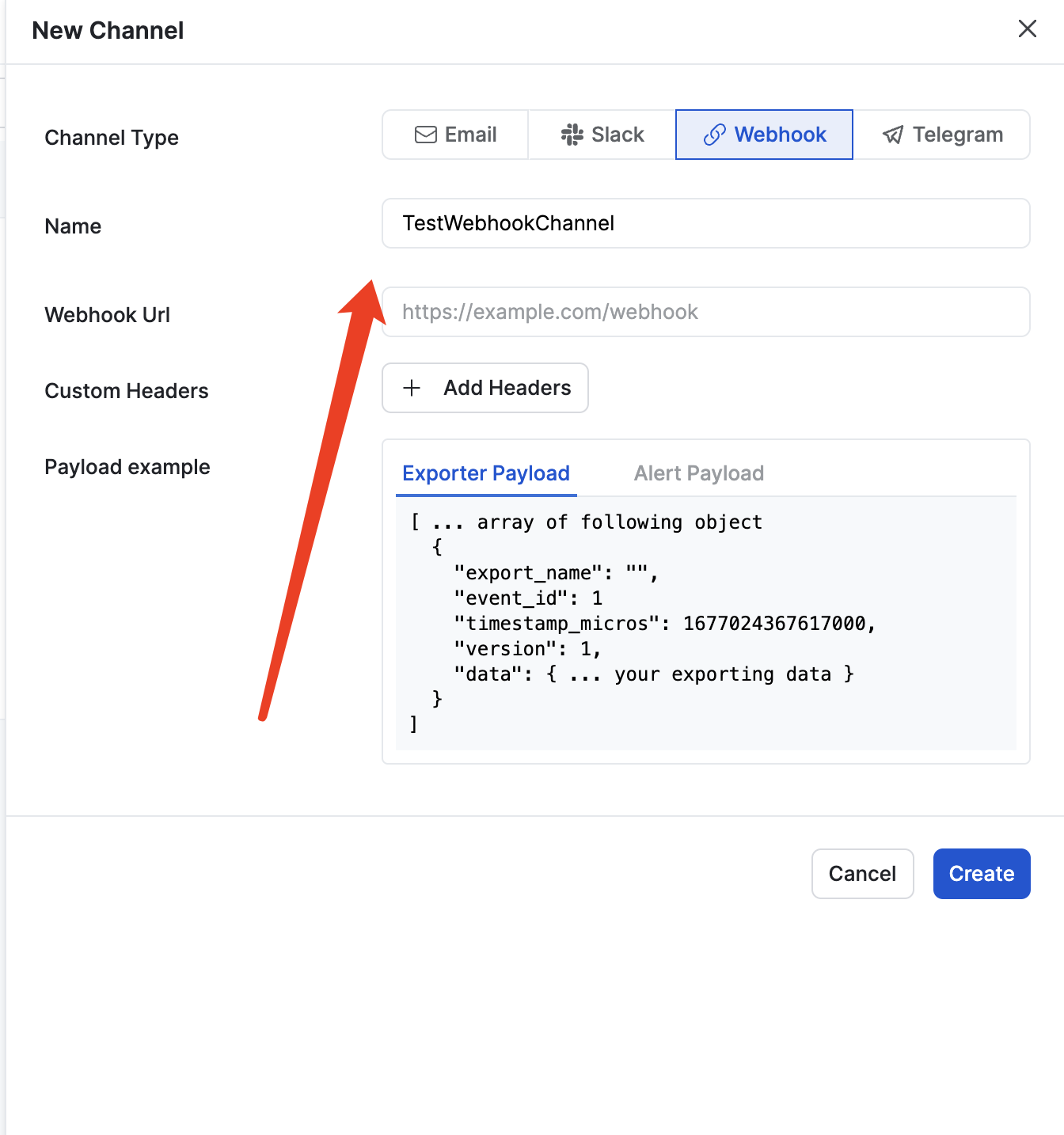

Note: The WebhookChannel
should be replaced by the name you created in the UI
%20(2).png)
To send webhook, use:
exporter.emit(ctx, { evt })
For configuring the notification channel, please refer to notification-channel
